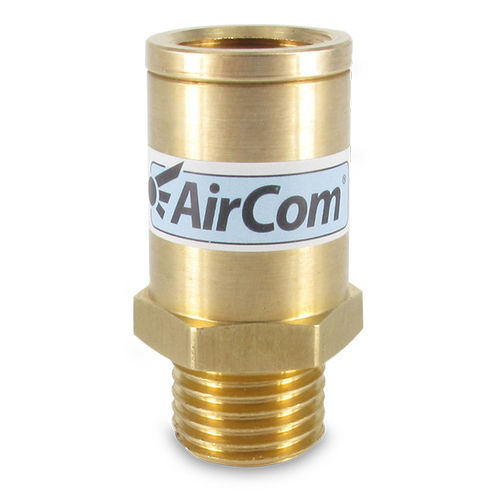

Compressed air pressure regulator R13-02 series

pistonsingle-stagebrass

Your are now in the overview of an article: R13 Choose a version from the table underneath, please. Description: In-Line pressure regulator with factory-set outlet pressure, reducing from e.g. 10 bar to 5 bar. The regulator R13 is suited for basic pressure control only with an outlet pressure tolerance of ±30%. The outlet pressure stated below is valid for 12 bar inlet pressure. For other inlet pressure please refer to the according item from the diagram. Benefits: • Higher safety through lower pressure. Tools and equipment protected against pressure damages. • Cost reduction through substantially reduced air consumption. Longer service life. • Noise reduction for tools. Media: compressed air or non-corrosive gases Adjustment: Select the pressure regulator according to the desired outlet pressure. The outlet pressure cannot be subsequently adjusted. This safeguards against tampering. Relieving_function: non-relieving, therefore not recommended for applications such as nailers Body: brass Elastomer: NBR/Buna-N, optionally FKM
