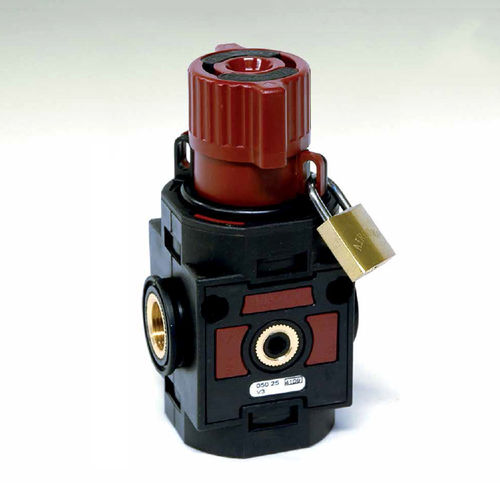

Air valve 50 series3-wayRoHS
Add to favorites
Compare this product
Characteristics
- Media
- for air
- Number of channels
- 3-way
- Other characteristics
- RoHS
- Pressure
Min.: 0 bar
(0 psi)Max.: 12.5 bar
(181.3 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Flow rate
2,580 l/min
(681.56 us gal/min)
Description
* Used to shut off the air supply while relieving the downstream circuit.
* The block device is particularly useful during maintenance operations. It prevents the system from being accidentally or wrongly pressurized.
* It can be wall mounted using the relative holes.
* Discharge connection: G1/4”.
* Maximum inlet pressure: 12,5 Bar (1,25 MPa).
* Max. ambient temperature (at 10 bar) 50°C (122°F).
* The device is equipped with 1 lock.
* Max. torque inserts G3/8” IN-OUT: 60 N·m.
* Max. torque inserts G1/2” IN-OUT: 80 N·m.
* Reference flow rate (P=10 Bar - Δp=1 Bar): 2580 Nl/min.
* Weight: 0,270 Kg.
* Product complies with Directive 2002/95/CE (RoHS).
