Poppet pneumatic directional control valve 110

solenoid-operated3/2-way2/2-way

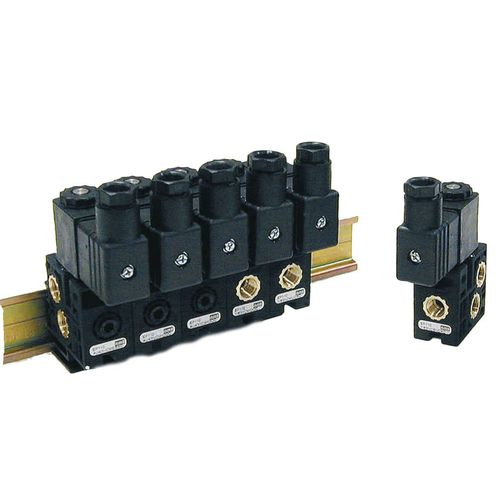

Aircomp Solenoid Valve Line 110 has been designed in order to offer the greatest versatility in use and thus, satisfy the several application requirements that market demands. The battery assembly of modular Solenoid Valves can consist of Solenoid Valves 3/2 both normally closed (NC) and normally open (NO), providing the undoubted advantage of concentrating all functions in one single valve battery. Moreover, the common exhaust of this Solenoid Valve avoids problems relating to the emission into the environment of air charged with impurity and condensate, then affecting deeply the electric components that are necessarily mounted near the valves. The batteries can be mounted through the preset holes on the body of each Solenoid Valve, or through a proper bracket enabling the coupling to an omega rail DIN EN50022 35 mm.
