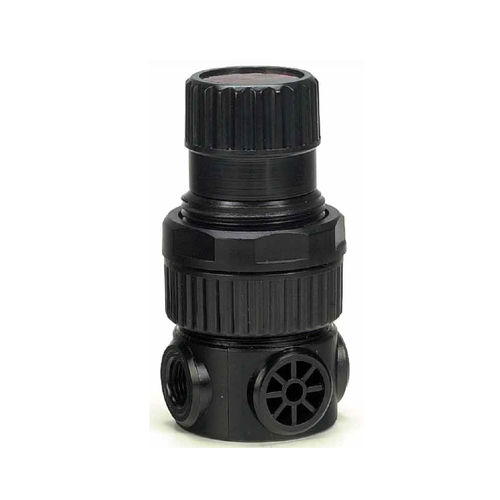

Air pressure regulator LC seriesmembranesingle-stagePOM
Add to favorites
Compare this product
Characteristics
- Product
- for air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- POM
- Applications
- industrial
- Other characteristics
- chemical-resistant
- Pressure
Min.: 0 bar
(0 psi)Max.: 12.5 bar
(181.3 psi)- Flow
360 l/min
(95.1 us gal/min)- Orifice diameter
Min.: 0.13 mm
(0.005 in)Max.: 0.25 mm
(0.01 in)
Description
Special type, particularly resistant to chemical agents.
* Body completely made in “POM” with 2 or 3 ways G1/8”.
* Connections obtained directly on the body (without inserts).
* Components in touch with fluid made in: EPDM, INOX, PUR, POM.
* Assembly and test made without oil and grease.
* Pressure ranges:
0÷2 Bar, 0÷4 Bar, 0÷8 Bar (standard), 0÷12,5 Bar
0÷0,2 MPa, 0÷0,4 MPa, 0÷0,8 MPa (standard), 0÷1,25 MPa
* Reference flow rate (P=6,3 Bar - Δp=1 Bar): 360 Nl/min.
* Weight: 0,078 Kg.
* Product complies with Directive 2002/95/CE (RoHS).
