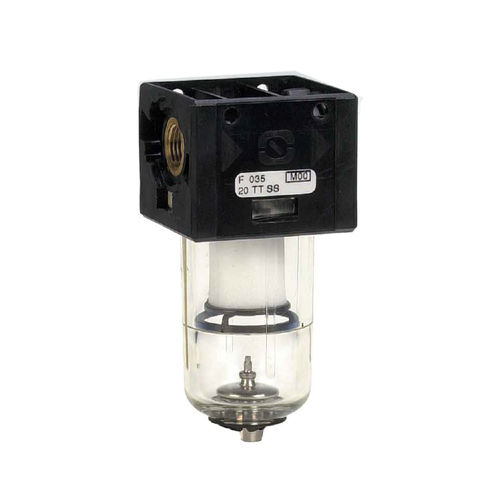

Cartridge filter housing 35 seriesfor liquids
Add to favorites
Compare this product
Characteristics
- Filter type
- cartridge
- Fluid
- for liquids
Description
Modular filter
* 5 micron, 20 micron (standard) and 80 micron (water) filtering element.
* Transparent bowl in toughened polyamide.
* Manually drained condensate.
* Bayonet connection for quick bowl removal.
* Can be wall mounted using the relative holes.
* Collected quantity of condensate: 8 cc.
* Maximum operating pressure: 7 Bar (0,70 MPa).
* Max. ambient temperature (at 7 bar) 50°C (122°F).
* Max. torque inserts G1/8” IN-OUT: 20 N·m.
* Reference flow rate (P=6,3 Bar - Δp=1 Bar): 750 Nl/min.
* Weight: 0,050 Kg
* Product complies with Directive 2002/95/CE (RoHS).
