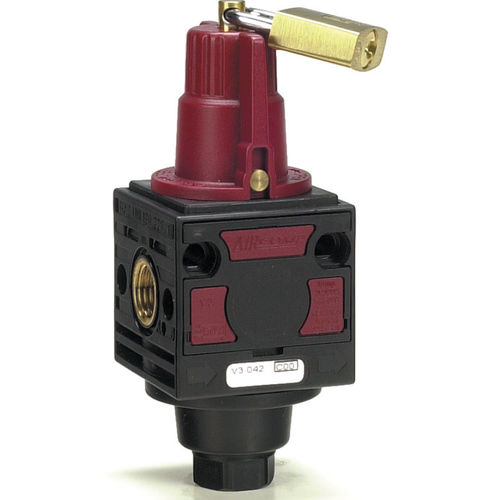

Manual valve shut-offfor air3-way
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- shut-off
- Media
- for air
- Number of channels
- 3-way
- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
50 °C
(122 °F)- Flow rate
1,570 l/min
(414.75 us gal/min)
Description
The block device is particularly useful during maintenance operations. It prevents the system from being accidentally or wrongly pressurized.
It can be wall mounted using the relative holes.
Discharge connection: G 1/8”.
Maximum inlet pressure: 16,0 Bar (1,60 MPa).
Max. ambient temperature (at 10 bar) 50°C (122°F).
The device is equipped with 1 lock.
Max. torque inserts G1/4” IN-OUT: 25 N·m.
Reference flow rate (P=10 Bar - Δp=1 Bar): 1570 Nl/min.
Weight: 0,155Kg.
Product complies with Directive 2002/95/CE (RoHS).
