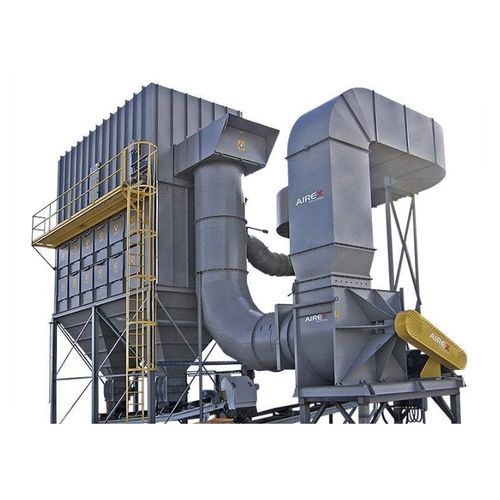

Filter dust collector Bagsonix Series

self-cleaning

Baghouse dust collectors stand out due to their ability to handle high volumes of dust laden air using a compressed-air self-cleaning system enabling effective reverse blasting through deformation of the filter bags. The unit filters sub-micron sized particles in continuous operating mode and with a steady loss of differential pressure. Our line of industrial baghouse dust collectors includes sealed mechanisms as well as doors that provide easy access with very few tools required for maintenance. Models from 16 to 720 filter bags and up to 125 000 CFM capacity. The systems in the Bagsonix series can be customized based on specific requirements. Avoids particle accumulation within plants, in order to better comply with NFPA regulations. Not limited to obtaining replacement cages and bags from a sole source provider. Dust-laden air enters and is directed to the bottom of the dust collector by means of a deflector plate prior to going through the filter bags. The dust accumulates creating a cake on the outside surface of the bags. At regular intervals, a burst of compressed air is injected into the bags through a parabolic nozzle that creates a shock wave causing the particles to fall to the bottom of the hopper. The filtered air exits through the venturis into the clean section and is then either expelled outside or recirculated, depending on the application.
