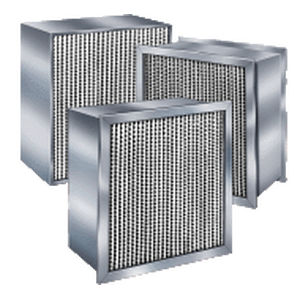

Air filter Variflow® SC

panelseparationaluminum

Less media than the standard Variflow Ultrafine microglass paper media Moisture resistant construction Single header, double header, no header models Metal and wood cell sides 6” and 12” depths available Corrugated aluminum separators Three efficiencies - 90-95%, 80-85%, 60-65% Designed for VAV Systems, Turbulent Conditions The media pack, consisting of pleated microglass paper media and corrugated aluminum separators, is sealed inside the cell sides forming a totally rigid filter assembly. Rigid cell construction is recommended for variable volume systems. Fluctuations in filter face velocity, turbulent air flow or repeated fan shutdown have no affect on filter integrity or performance. Ultra Fine Water Resistant Media SC Variflow media is made from ultra fine fiber microglass paper. Each efficiency has its own formulation for fiber size and density. Paper mat media is unaffected by humidity or intermittent exposure to water. Water does not pass through the media, but causes a temporary rise in resistance, which quickly falls back to normal levels as the moisture evaporates. Variflow filters are widely used in areas with high humidity or in systems where sensible moisture is likely to reach the filter.
