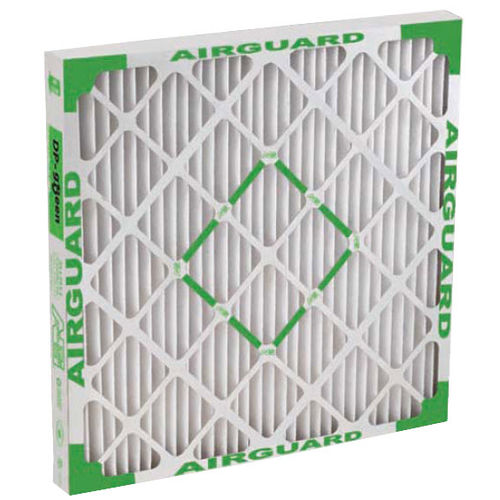

Air filter DP-g13een ®

paneldustsynthetic

MERV 13 Moisture resistant beverage board frame Damage resistant May qualify as a sustainable component for LEED/Green Building Initiative 1”, 2” and 4” depths available Media •100% synthetic media resists moisture, mold, and damage •Maintains MERV 13 performance in a full ASHRAE 52.2-2012 independent test •Meets minimum efficiency criteria required by Leadership in Energy and Environmental Design (LEED) Construction: • Heavy duty, moisture-resistant beverage board frame • Two-piece die-cut frame bonded to each other provide double-wall thickness around outer edge • Die cut pattern provides 50% more contact points between media pack and frame • Integral die-cut cross members provide strength and rigidity • Water repellent adhesive used to bond frame with media pack • Rust-resistant, expanded metal support grid made of galvanized steel • 100% water repellent, high-strength adhesive coats entire interior of frame • Media pack sealed inside frame and pleat tips bonded to diagonal support members Pleat Consistency: Consistent pleat shape produces optimum performance by providing lower resistance, full depth dust loading, and longer service life in the field. Airguard uses sophisticated production control techniques to ensure consistent pleat count, height, shape, and spacing for the DP-green 13 filter.
