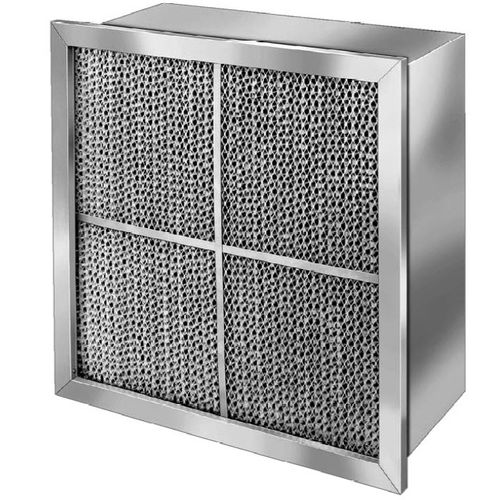

Air filter Variflow® HT

panelmetalglass

For High Temperature Applications High efficiency microglass paper media Completely rigid, metal box construction Single header construction (standard), double header (optional) Cross braces and faceguards on both sides 6” and 12" depths available 24 gauge aluminized steel cell sides High temperature glass wrap sealant Three temperature ranges - 500°F, 750°F, 900°F Three efficiencies - 90-95%, 80-85%, 60-65 High-Efficiency Rigid Cell Filters for High Temperature Applications Variflow® HT filters are designed to provide high filtration efficiency in high temperature applications. Three temperature ranges are available (500oF, 750oF and 900oF) to meet the operating requirements of any system. • High-efficiency microglass paper media • Three efficiencies MERV 14, 13 and 11 • Three temperature ranges - 500oF, 750oF and 900oF • Completely rigid, metal box design • Cross braces and faceguards on both sides • 12" and 6" depths • 24-gauge aluminized steel cell sides • High temperature glass wrap sealant • Single-header construction (standard) Doubleheader (optional) • High temperature gasket on air leaving side Heavy Duty Construction The cell sides are constructed of aluminized steel which will not flake off or become brittle at elevated temperatures. Cross braces and expanded metal faceguards on the air entering and leaving sides provide additional support and rigidity. Corrugated aluminum separators with rolled edges maintain proper spacing between pleats at all air flow rates and operating temperatures.
