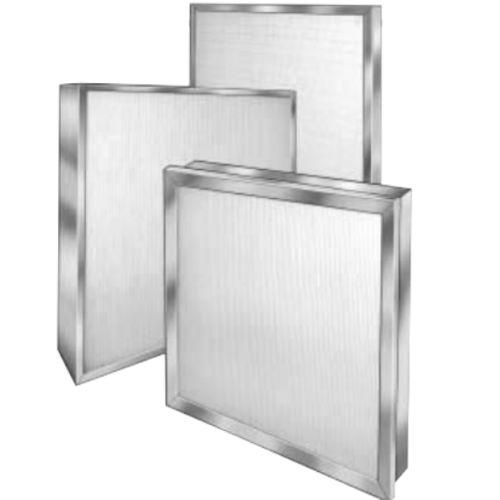

Air filter Variflow® II-M series

panelsteelgalvanised steel

Galvanized steel cell sides Box construction - No header 2” and 4” depths available Adhesive bead separators Two efficiencies - 90-95%, 60-65% Galvanized steel cell sides 13/16" header on air entering side Skip bead, mini-pleat adhesive separators For side access applications 4” depth available Two efficiencies - 90-95%, 60-65% Variflow II metal cell filters incorporate the performance of high efficiency mini-pleat media packs with durable corrosion resistant steel cell sides. Two construction styles are available Variflow II-MC - Single Header (4") for side access applications. Variflow II-M - Box Style, No Header (2",4"). The all-metal construction of Variflow II-M and MC makes these products ideal for high humidity or high moisture environments where space is a premium. • High efficiency, microglass paper media • Mini-pleat media pack with adhesive bead separators • Available in two efficiencies: 90% - 95% (MERV-14); 60 - 65% (MERV 11) • Low profile (2" and 4" deep) • Completely rigid, all metal design • Corrosion resistant galvanized steel cell sides • Expanded metal faceguard on air leaving side • Moisture resistant • Optional gaskets • Classified UL Class 2 • Maximum operating temperature: 170 °F
