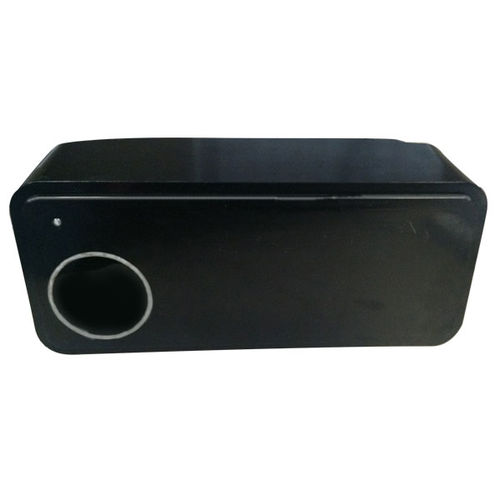

Acoustic ultrasonic transducer CM599LHW Wide-beam Chirp-ready Cavity Mount

high-frequency

CM599LHW Wide-beam Chirp-ready Cavity Mount Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat is essential down to 152 m (500'). The low-frequency band is rated to 3 kW and produces amazing deep-water performance to 3,048 m (10,000'). Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage. Features: - Depth and fast-response water-temperature sensor - 3 kW low frequency for superior deep-water performance: 28 to 60 kHz - 23° to 9° port-starboard beamwidth - 11° to 5° fore-aft beamwidth - Maximum depth performance to 3,048 m (10,000') 1 kW high frequency: 150 to 250 kHz - 25° constant beamwidth - Maximum depth of 152 m (500') - 132 kHz of total bandwidth from one transducer - Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth - High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation - High wide beamwidth yields more coverage for detecting fish in the upper-water column - Urethane housing with Curved-edge Design for wet-box installation - Also available as an external (R509LHW) mount - Exclusive Xducer ID® technology
