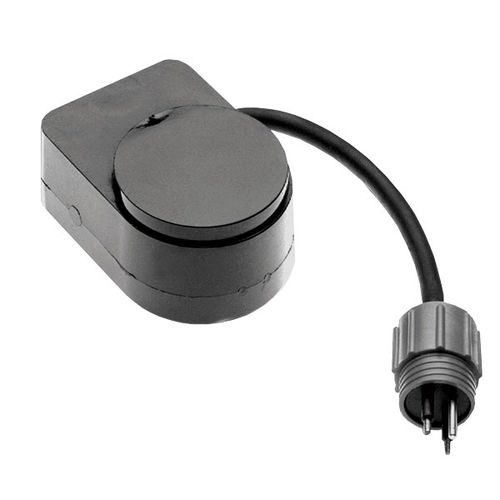

Underwater depth sensor M153

with temperature measurement

Versatile Sensing The M153 is our smallest, trawl-mount transducer that installs in a flooded pod. Connection to the trawl cable is easy with the included MacArtney SUBCONN® underwater connector. This transducer can also be used in altimeter applications on ROVs and AUVs. Applications: - Trawl monitoring - ROVs and AUVs Features: - Transducer is pressure rated to 600 m (2000') - 50 kHz and 200 kHz options for versatile sensing applications - Stainless-steel, internal chassis - SEALCAST™, seamless, urethane housing for long life underwater Options: - Coupling transformer for interface to catch monitor - Bulkhead connector on transducer - No underwater connector - Other frequencies and impedances Specifications: - Weight: 0.7 kg (1.5 lb.) - Acoustic Window: Urethane - Cable Type: C43, one shielded twisted pair (2-14 AWG) with braided shield, black neoprene jacket, 10 mm (13-32") diameter
