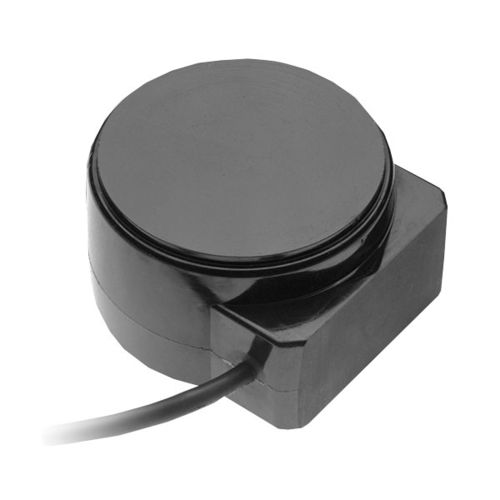

Underwater depth sensor M159

with temperature measurement

Mid-Range Beamwidth The M159 was specifically designed for retrofitting to popular 30 kHz, 33 kHz, and 50 kHz net sounders. Its mid-range beamwidth can be used to measure a trawl net’s distance from the bottom or surface. Connection to the trawl cable is easy with the MacArtney SUBCONN® underwater connector. Applications: - Trawl monitoring Features: - For retrofit with existing 30 kHz, 33 kHz, and 50 kHz net sounders - Transducer is pressure rated to 600 m (2000') - Easy-to-mount in flooded pod - Stainless-steel, internal chassis - SEALCAST™, seamless, urethane housing for long life underwater Specifications: - Weight: Varies depending on configuration (Call for weight) - Acoustic Window: Urethane - Cable Type: C43, one shielded twisted pair (2-14 AWG) with braided shield, black neoprene jacket, 10 mm (13-32") diameter
