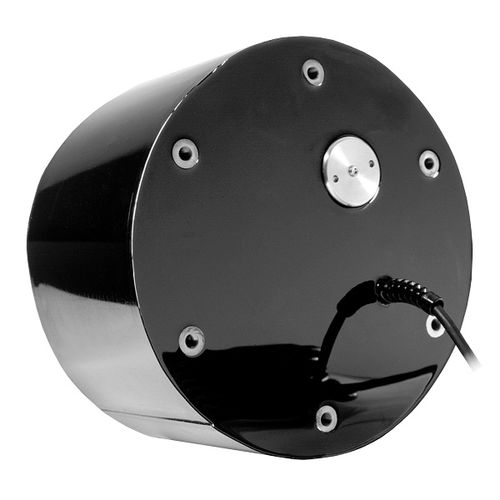

Underwater depth sensor M190

Excellent Deep-water Performance M190 features a large, low-frequency, narrow-beam array for excellent deep-water performance. The 12 kHz model can be used for sub-bottom profiling. Applications: - Deep-sea survey - Sub-bottom profiling Features: - Highly efficient, low-ringing array for exceptional bottom detail - Matching transformer provides pure resistive load - Stuffing tube available to form a watertight conduit for cable routing - Housing has six threaded mounting points - Can be adapted for use as a portable mount - SEALCAST™, seamless, urethane housing with internal, stainless-steel, chassis resists damage when impacted Specifications: - Weight: Varies depending on configuration (Call for weight) - Acoustic Window: Urethane - Cable Type: C43, one shielded twisted pair (2-14 AWG) with braided shield, black neoprene jacket, 10 mm (13/32") diameter
