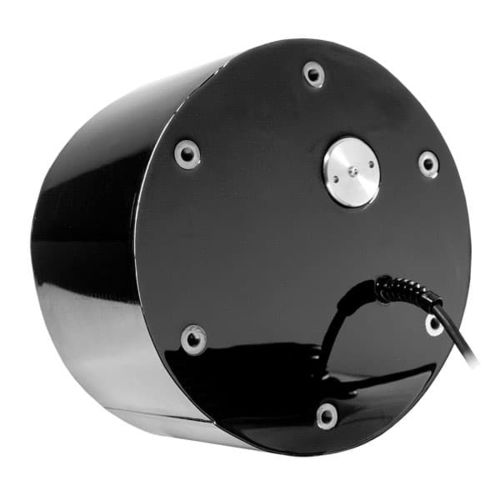

Underwater depth sensor M74

Low-frequency Performance The M74 features low-frequency, ceramic arrays for exceptional deep-water performance and sub-bottom detail. This transducer can be “chirped” with a longer pulse over a wide-frequency band. Applications: - Survey echosounding - Sub-bottom profiling Features: - Long acoustic paths - Matching transformer provides pure resistive load - Transducer has a transformer-access pocket for simplified field repair - Housing has six threaded mounting points - SEALCAST™, seamless, urethane housing for long life underwater Options: - 12 or 15 kHz array - Impedance to customer’s specifications using matching transformer - Bulkhead or in-line connector to customer specifications Specifications: - Weight: Varies depending on the cable length and configuration (call for weight) - 12 kHz: 74.5 kg (164 lb.) - 15 kHz: 40 kg (88 lb.) - Acoustic Window: Urethane - Cable Type: C43, one shielded twisted pair (2-14 AWG) with braided shield, black neoprene jacket, 10 mm (13/32") diameter
