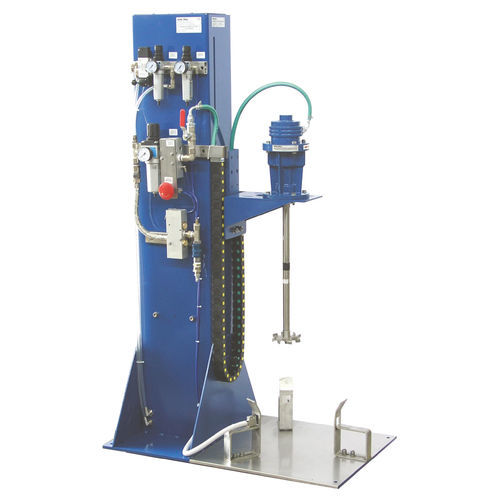

Drum mixing unit 237015-EM03P

Extremely versatile fully pneumatic mixing station for safety and work efficiency. Standard equipment with cowless propeller for high product dispersion and homogenization. The extreme sturdiness allows safe mixing at a fixed working height or even during intermediate phases for perfect incorporation of products that require it. Integrated station complete with adjustable locking device for drums and safety sensors in series (activation consent - presence of drums). Mixing for: 4 kg drums - (indicator size ø21 x h. 19 cm) Mini drums of 16 – 25 kg - (indicator size ø29.5 x h. 43 cm) Equipment 237015-EM03P includes: PMRD-015-V33 pneumatic agitator - Stainless steel Pneumatic lifter 230790 - Drum support base and locking brackets - Stainless steel Essential characteristics of equipment 237015-EM03P: Centralized compressed air connection: - G 1/2” (F) Max motor power (@ 6 bar): - 1.5 HP Stall Torque: - 5.6Nm Engine supply air: - 2 ÷ 6 bars Pneumatic lift stroke: - 600mm Air consumption at max power: - 1.3 m³/min Dissolving Helix: - cowless 100mm rpm: - 20 – 3000 L/total shaft (from flange plane): - 510mm Options: Version for drums up to 60 lt Stainless steel drum cover Propellers for specific uses Rev counter set with display – Pneumatically operated safety drum stop device (suitable for positioning drums complete with movement support)
