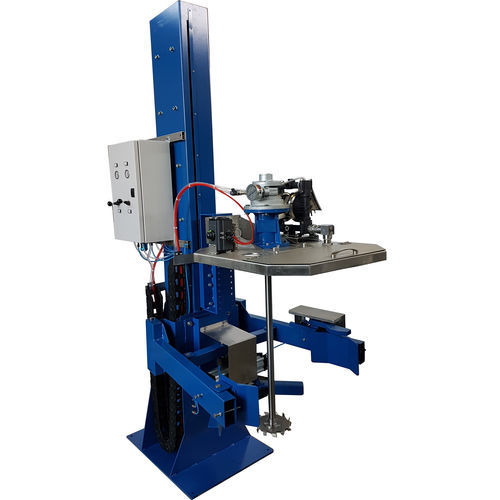

Drum pumping unit Air-237200-CPx(V2)
paintpneumaticstationary

Drum pumping unit - Air-237200-CPx(V2) - Airmation ECP srl - paint / pneumatic / stationary
Drum pumping unit - Air-237200-CPx(V2) - Airmation ECP srl - paint / pneumatic / stationary
Drum pumping unit - Air-237200-CPx(V2) - Airmation ECP srl - paint / pneumatic / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Fluid
paint
Operation
pneumatic
Mobility
stationary
Domain
industrial
Applications
drum, mixing, recirculation, for industrial applications
Material
stainless steel
Other characteristics
with integrated filter, with mixer
Flow

60 l/min
(15.85032 us gal/min)

Power

3 kW
(4.08 hp)

Description

Execution with product pick-up station from 200 drums, sending them to automatic processing and painting machines Pre-mixing station with continuous recirculation pump. Completely pneumatic execution versatile and safe, suitable for preparation, mixing and centralized feeding of process fluids in tanks 200 lt. The supplied mixer with high dispersion propeller and operation of the recirculating pump ensure maximum dispersion with homogenization of all the fluid content before and during use. Equipment components and features: – Full pneumatic elevator for equipment with centralized controls – Articulated safety device for embracing and holding 200lt drums – Pneumatic transfer pump with suction KIT – Lid equipped with equipment support in inspectable version – Safety devices in series for drum presence and activation phases – Automatic valve for fluid recirculation in the drum / user replenishment – Pneumatic mixer with specialized cowless propeller for high dispersion Main options: – Roller table for forwarding and moving stems to be treated – Pneumatic pump: ratios available up to 80:1 – flow rates up to 60 l/min – Atex version for potentially dangerous environments – Components for pressure and flow control
