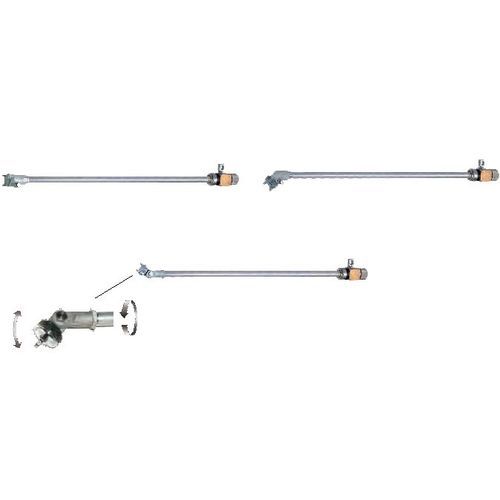

Gun with extension PA110-PX series

sprayingpaintwith orientable head

Model PA 11 0-PX11 L is equipped with a special nozzle and cap developed for painting the inside surface of pipes, making it ideai for painting the inside of long pipes with a small inner diameter. Model PA 11O-PX17LA can spray both full eone and hollow eone in adjusting the position of pipe piace, and it is suitable for spraying inside of the pipe in less than cp300mm. Remarks - - Head angle cannot be changed when the spray gun is in use, and shall be changed after cleaning the paint circuit with no fluids inside. Due to its design and structure, please avoid changing the angle frequently. - - When the spray gun is in use, please do not loosen the Air cap nut. When changing direction of Air cap, Air cap itself shall be turned without loosening the Air cap nut. - - Fluid viscosity shallbe less than 30sec by using V-1 model viscosity cup. Fluids with high viscosity may result in less ejection amount.
