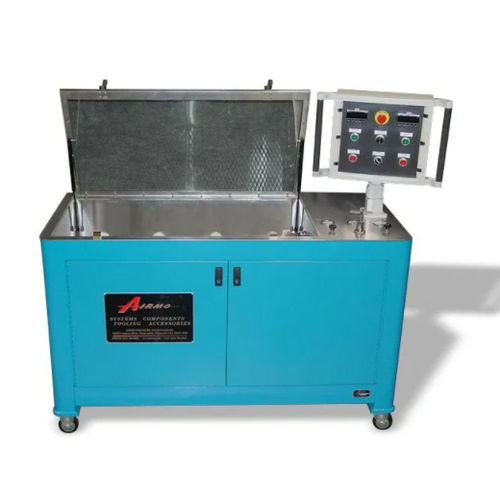

High-pressure test chamber TestMaster® 300096HT

for the aeronautical industryfor aircraftfor automobiles

Pressures Up to 30,000 psi (2,068 bar) The TestMaster® Model 300096HT Burst Test Chamber along with TestMaster® Hydrostatic Test Tooling provides a safe, efficient means of destructive and non-destructive pressure testing for tubes, valves, air-conditioning coils, and hose assemblies. Systems are configured to customer specifications based on size, pressure capabilities, and testing requirements. The stainless steel construction makes this equipment durable for high-volume, high-pressure testing. Chambers are portable and easily installed using standard plumbing systems to provide pressure generation for oil or water services. Specifications Description Maximum Pressure: - Working pressures up to 30,000 psi (2,068 bar) Accuracy: - ±50 psi (±3.45 bar) Temperature: - 32° F to 120° F (0° C to 49° C) Services: - Water, de-ionized water, oil Electrical: - Tailored to type of electrical service used Control Options: - Manual, auto-cycle, PLC, or touch screen Digital Display: - View in-cycle data Flow Rate: - High volume Safety Interlock: - Protects operator by interrupting cycle Safety Shield: - High strength polycarbonate Noise Level: - Runs quietly Construction: - Stainless steel frame, impact resistant enclosure Custom Options: - Custom designs built to application requirements System Options A range of pressure, enclosure and control options are available for Airmo Burst . Applications Destructive and non-destructive testing Pressure hold and leak testing Pressure hold and leak testing Safe containment chamber testing Burst testing Research and development testing Sample lot testing Download Product S
