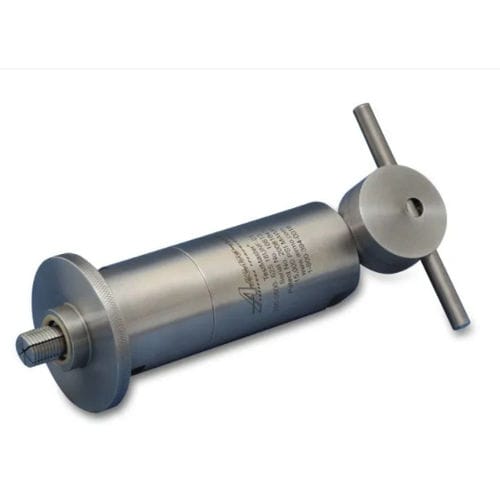

The patented TestMaster® Model 350 Series Hydrostatic Bottle and Cylinder Test Tool offers fast coupling and positive sealing for production pressure testing of bottles, cylinders, tanks, and other components with an internally-threaded port.
The propriety collet design is the key feature of the Model 350 Tool. When the tool is engaged in the threaded area of the test piece, it does not mark or deform the threaded surface. This tool provides positive sealing on the end face of the internally-threaded port. Pressure compensation in the tool increases the sealing force, and ensures the collets remain engaged with the component threads, eliminating the need for additional safety devices. The tool can be used with a wide variety of services including water, oil, gas, or other liquids on request.
The Model 350 Series Tool is designed to meet your hydrostatic testing requirements. Configured for either manual or semi-automatic fluid testing, this tool integrates five technology patents for increased testing speed.
Benefits include: ease of use, faster rates of testing, higher quality assurances, and increased safety.
The Model 350 is suitable for hydrostatic pressure testing on bottles, cylinders, and tanks with standard working pressures up to 15,000 psi (1,034 bar) according to military, nuclear, automotive, and aerospace specifications, such as API, ASTM, ASME, ISO, DIN, and BS.
The Model 350 Series Tool handles standard and metric thread sizes from 0.50 in. to 0.88 in. ID (12.7 mm to 22.4 mm ID) major diameters.
Applications
The TestMaster® Model 350 Series Tool is used for testing bottles or cylinders with internally-threaded ports.
Bottle testing
Cylinder testing
