C2H2 analyzer Cross Duct SG

gasmonitoringprocess

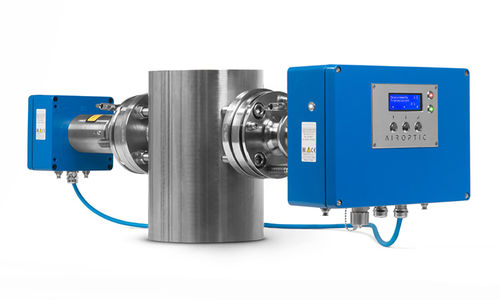

GasEye C2H2 is a high performance in-situ acetylene analyzer. Suitable for safety applications and process control. 24/7 continuous operation. No sample preparation. No zero drift. No field calibration. Low cost of ownership. Features C2H2 ranges: 0 – 1 ppmv / 0 – 100 vol% Process temperature: 0 – 250°C Real time sensing: response time below 0.1 second High selectivity: automatic compensation for interference effect from other constituents in the gas sample High sensitivity: detection limit below 0.02 ppmv per meter In-situ monitoring: direct in the process, no sample preparation Maintenance free: equipped with a self-calibrating feature, no field calibration necessary Robustness: IP66 enclosure, suitable for outdoor and indoor installations and harsh environments Insensitive to dust and smoke in the measured process: up to 50 g/m3 ATEX version available Example Applications Safety monitoring Process control Example Industries Petrochemical industry Chemical industry
