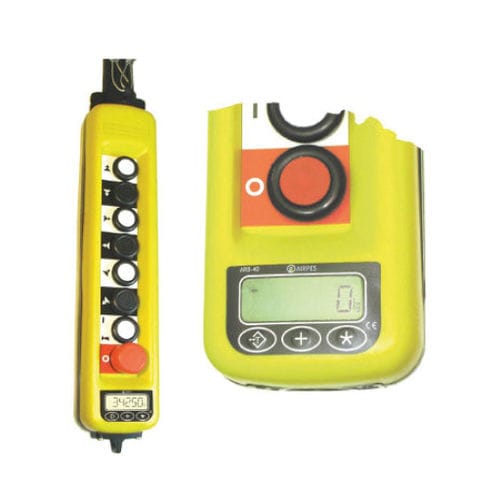

Weight repeater ARB-40

The ARB-40 is a repeater of weight designed by Airpes as a complement of the ALE-100 limiter, sited in the panels of pushbuttons by cable for the control of the devices. Airpes’ repeater for buttons ARB-40 features The ARB-40 model of the repeater for a panel of push buttons is a repeater of weight specially designed as a complement to another weighing equipment, the ALE-100 limiter. It has been thought to be sited in the panels of pushbuttons by cable for the control of devices like cranes, overhead traveling cranes, hoists, elevators, etc. It is easy to connect by means of two wires without polarity. Repeater for buttons ARB-40 allows the visualization of the lifted weight, as well as the realization of the accumulation of weighing’s in order to extract the total afterward. • Connection By means of two wires without polarity towards whichever AIRPES device • Digits Alphanumerical LCD display of 6 digits of 10 mm • Keys 3 keys to achieving the different functions • Functions Tare, Accumulation of weighings, and Total • Feeding Does not need external feeding • Temperature -10ºC / 50ºC • Humidity 15% – 85%
