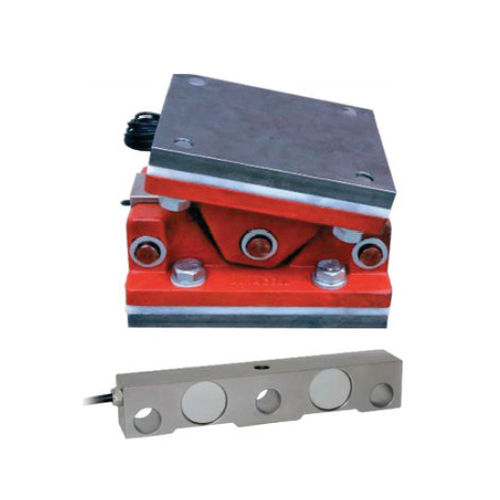

Compression load cell SKP

beam typecapacitivefor silos

Load Cells compression SKP especially designed for the control of the charge in silos. FEATURES • Capacities of 1000, 2000, 3000, 4000, 4500, 5000, 6000 Kg. • Cells especially designed for the control of the charge in silos. • Includes an anti –capsizing support. • These double cutting cells are made of alloyed steel or stainless steel. • They hold a low-profile support, treated with highly corrosion-resistant paint. BENEFITS • Sensitiveness 2mV/V • Adjustment tolerance sensitiveness 0.1% • Adjustment zero tolerance <1% F.E. • Excitation tension ≤24V • No linearity <0.015% F.E. • No repeatability <0.012% F.E. • Combined error <0.029% F.E. • Hysteresis <0.012% F.E. • Fluency in 30 minutes <0.025% F.E. • Temp. effect and sensitiveness 300% F.E. • Cable (length of 8 metres) Flexible 6×0.25mm
