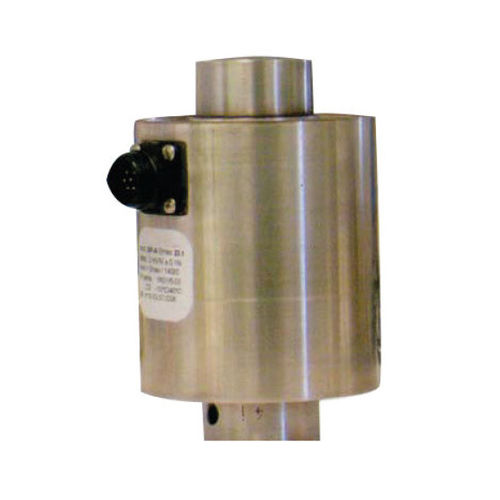

Compression load cell SP-A

canistercapacitivestainless steel

The SP-A model load cells have been specially designed to work under compression Features of Airpes’ Load Cells Compression SP-A Main features of Airpes’ Compression Load cells SP-A These are the main features of the load cells: • These load cells are constructed in stainless steel. • Including 4.000 divisions OIML-R60. • The load cells are waterproof IP-68. • Its capacities go from 10,000 Kg to 50,000 Kg. Benefits of Airpes’ Load Cells Compression SP-A • More features of Airpes’ Load cell compression SP-A • Class of precision: C3-C4 • Sensitiveness: 2±0,1%mV/V • Vmin: Emax/10000 • Supply voltage: 5÷15V • Entry resistance: 800±3Ω • Exit resistance: 700±3Ω • Compensated temperature margin: -10ºC a +40ºC • Insulation resistance: >5000M Characteristics of Airpes’ Load Cells Compression SP-A • Class of precision C3 • Sensitiveness: 2±0,1%mV/V • Vmin: Emax/10000 • Voltage of feeding: 5÷15V • Resistance at input: 390±3Ω • Resistance at output: 350±3Ω • The compensated margin of temperature: -10ºC a +40ºC Resistance of insulation: >5000M
