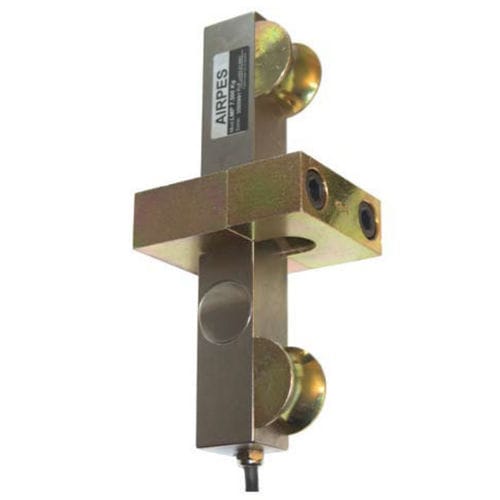

Beam type load cell LMcapacitivefor cablesIP66
Add to favorites
Compare this product
Characteristics
- Form
- beam type
- Technology
- capacitive
- Applications
- for cables
- Other characteristics
- IP66
- Rated load
Min.: 1,000 kg
(2,204.62 lb)Max.: 15,000 kg
(16.53 lb)
Description
The LM model of load cells have been specially designed for the measurement of load in steel cables.
FEATURES
Main features of Airpes’ Limiter Load Cells LM
The construction of the load cells by Airpes is made in alloy steel and chemically treated anticorrosive nickel.
• Leak-tightness IP-66
• Capacities from 1,000Kg to 15T
• The load cells are available in stainless steel
BENEFITS
More features of Airpes’ Limiter Load Cells LM
Here are some more features:
• Class of precision: C3
• Sensitiveness: 2±0,1%mV/V
• Vmin: Emax/10000
• Voltage of feeding: 5÷15V
• Resistance at input: 350Ω
• Resistance at output: 350Ω
• Compensated margin of temperature: -10ºC a +40ºC
• Resistance of insulation: >5000M
