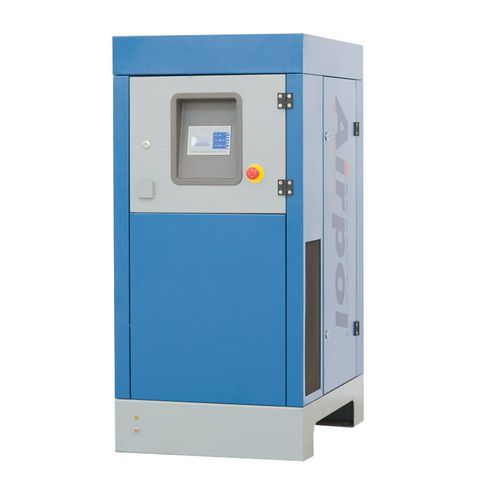

Screw compressor Airpol 7airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Flow
35 m³/h
(1,236.01 ft³/h)- Power
7.5 kW
(10.2 hp)
Description
Screw compressor
Overpressure [MPa] - options 0,8 / 1,0 / 1,3 / 1,5
Fixed capacity:
Capacity [m3/h] [ 0,8 MPa ] 68
Capacity [m3/h] [ 1,0 MPa ] 57
Capacity [m3/h] [ 1,3 MPa ] 47
Capacity [m3/h] [ 1,5 MPa ] 35
Dimension (LxWxH) [mm] 940x660x1340
Air receiver volume [l] -
Compressed air connection G 1/2
Weight [kg] 290
Ambient temperature [°C] +5 ÷ +40
Cooling air demand [m³/h] 1200
Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature
Sound level L [dB(A 70
Power transmission system belt drive
Nominal motor power [kW] 7,5
Energy efficiency class / Motor IP Code IE3 / IP55
Feed voltage [V/ph/Hz] 400/3/50
Recommended power feed cable [mm2 ] 4x4
Protection fuse [A] 25
