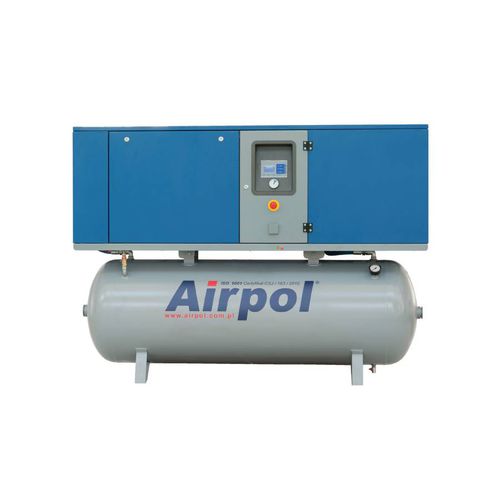

Screw compressor KT 15

airelectrically-poweredstationary

Screw compressor with dryer and filters Overpressure [MPa] - options 0,8 / 1,0 / 1,3 / 1,5 Fixed capacity: Capacity [m3/h] [ 0,8 MPa ] 150 Capacity [m3/h] [ 1,0 MPa ] 120 Capacity [m3/h] [ 1,3 MPa ] 96 Capacity [m3/h] [ 1,5 MPa ] 85 Dimension (LxWxH) [mm] 1920x660x1600 Compressed air connection G 3/4 Weight [kg] 515 (0,8-1,0 MPa) / 565 (1,3-1,5 MPa) Air receiver volume [l] 500 Ambient temperature [°C] +5 ÷ +40 Cooling air demand [m³/h] 3500 Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature Sound level L [dB(A 72 Power transmission system belt drive Nominal motor power [kW] 15 (IE3) Feed voltage [V/ph/Hz] 400/3/50 Power feed cable [mm2 ] 5x6 Protection fuse [A] 40 Dryer pressure dew point [°C] +3 Quality class in accordance with ISO 8573.1 2.4.2
