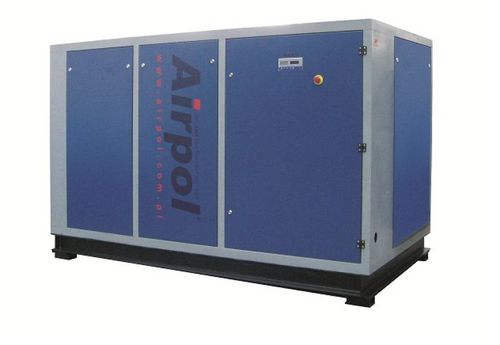

Screw compressor BS 55airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Other characteristics
- two-stage
- Flow
475 m³/h
(16,774.47 ft³/h)- Power
55 kW
(74.78 hp)
Description
Oil-free two-stage screw compressor
Overpressure [MPa] 0,8 / 1,0
Fixed capacity:
Capacity [m3/h] [ 0,8 MPa ] 475
Capacity [m3/h] [ 1,0 MPa ] 397
Dimension (LxWxH) [mm] 2500 x 1400 x 2000
Compressed air connection G 1 1/2
Weight [kg] 3400
Ambient temperature [°C] +5 ÷ +40
Cooling air demand [m³/h] 16500
Compressed air temperature on the outlet [°C] approx.10 - 15 degrees above ambient temperature
Sound level L [dB(A 85
Power transmission direct drive
Nominal motor power [kW] 55
Nominal fan motor power [kW] 4
Feed voltage [V] 400
Recommended power feed cable [mm2 ] 3x50+PE
Protection fuse [A] 125
