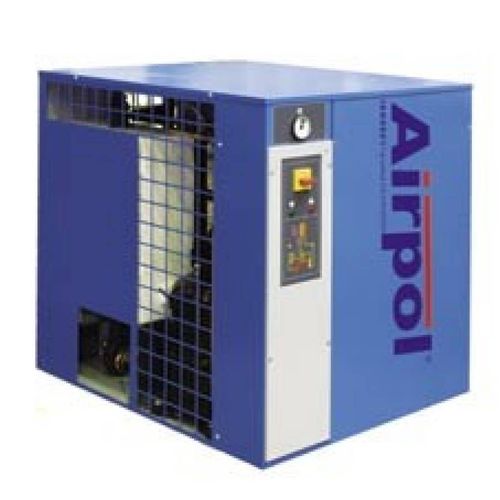

Refrigerated compressed air dryer OP 80

compact

Refrigerant dryer Air flow [m³/h] 390 Air flow [m³/min] 6.50 Dryer pressure dew point [°C] +3 Min working pressure [MPa] 0.5 Max working pressure [MPa] 1.3 Max compressed air temperature on the outlet [°C] +55 Ambient temperature [°C] +5 ÷ +45 Dimension (LxWxH) [mm] 580 x 590 x 900 Compressed air connection G 11/2 Weight [kg] 80 Sound level L [dB(A 59 Nominal power [kW] 1.19 Feed voltage [V] 230V/50Hz/1ph Recommended power feed cable [mm2 ] 3x2,5 Protection fuse [A] 16 Refrigerant type R410A
