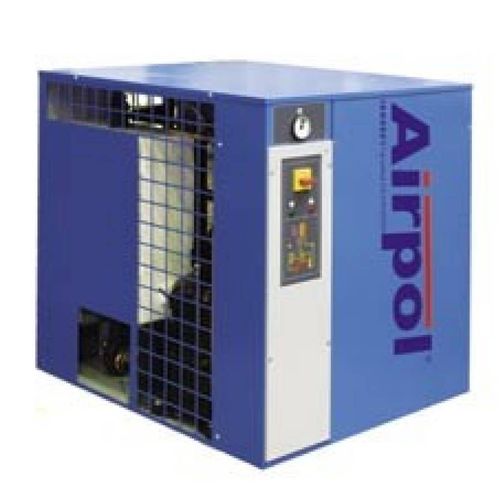

Refrigerated compressed air dryer OP 120

compact

Refrigerant dryer Air flow [m³/h] 900 Air flow [m³/min] 15.00 Dryer pressure dew point [°C] +3 Min working pressure [MPa] 0.5 Max working pressure [MPa] 1.3 Max compressed air temperature on the outlet [°C] +55 Ambient temperature [°C] +5 ÷ +45 Dimension (LxWxH) [mm] 735 x 900 x 962 Compressed air connection G 2 Weight [kg] 158 Sound level L [dB(A 67 Nominal power [kW] 2.440 Feed voltage [V] 400V/50Hz/3ph Recommended power feed cable [mm2 ] 4x1,5 Protection fuse [A] 10 Refrigerant type R410A
