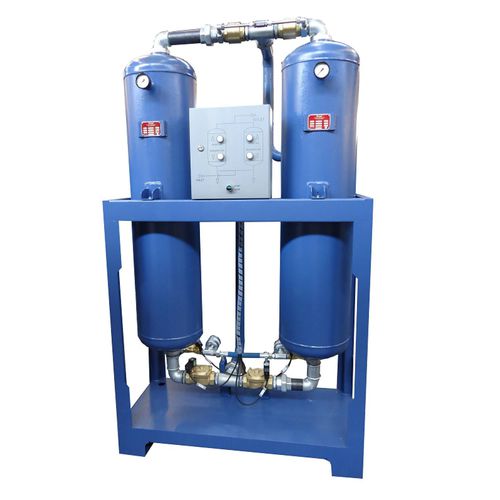

Desiccant compressed air dryer OAD 100

Cold regenerated adsorption dryer Air flow [m³/h] 100 Consumption for regeneration (average) [m³/h] 15.0 Air flow at the outlet (min) [m³/h] 81.6 Dryer pressure dew point [°C] -40 Quality class in accordance with ISO 8573.1 1.2.1 Min working pressure [MPa] 0.6 Max working pressure [MPa] 1.0 Max compressed air temperature on the outlet [°C] +45 Max oil content on the inlet [mg/m³] < 3 Ambient temperature min÷max [°C] +5 ÷ +40 Dimension (LxWxH) [mm] 850 x 520 x 1450 Compressed air connection G 1 Weight [kg] 190 Installed power [W] 50 Feed voltage [V] 230V/50Hz/1ph Recommended power feed cable [mm2 ] 3x1,5 Protection fuse [A] 6 Equippment compressed air filters (very fine filter and dust filter) Control system time control or dew point control (in SP-version)
