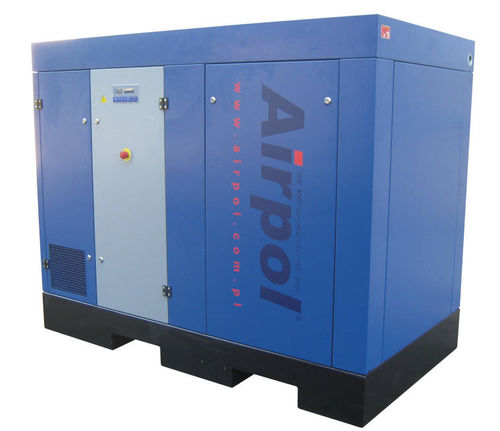

Screw compressor PR 37airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Other characteristics
- with frequency control
- Flow
Min.: 192 m³/h
(6,780.42 ft³/h)Max.: 385 m³/h
(13,596.15 ft³/h)- Power
37 kW
(50.31 hp)
Description
Screw compressor with frequency converter
Overpressure [MPa] - options 0,75 /1,0 /1,3
Variable capacity:
Capacity min-max [m3/h] [ 0,75 MPa ] 100 - 385
Capacity min-max [m3/h] [ 1,0 MPa ] 96 - 325
Capacity min-max [m3/h] [ 1,3 MPa ] 98 - 290
Dimension (LxWxH) [mm] 1740 x 950 x 1500
Compressed air connection G 1 1/2
Weight [kg] 910
Ambient temperature [°C] +5 ÷ +40
Cooling air demand [m³/h] 5900
Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature
Sound level L [dB(A 75
Power transmission system direct drive
Nominal motor power [kW] 37
Nominal fan motor power [kW] 1.5
Energy efficiency class / Motor IP Code IE3 / IP55
Feed voltage [V/Ph/Hz] 400/3/50
Recommended power feed cable [mm2 ] 3x35+PE
Protection fuse [A] 100
