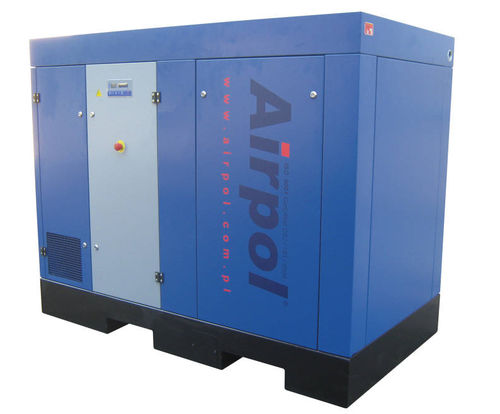

Screw compressor PR 55airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Other characteristics
- with frequency control
- Flow
Max.: 595 m³/h
(21,012.23 ft³/h)Min.: 298 m³/h
(10,523.77 ft³/h)- Power
55 kW
(74.78 hp)
Description
Screw compressor with frequency converter
Overpressure [MPa] - options 0,75 /1,0 /1,3
Variable capacity:
Capacity min-max [m3/h] [ 0,75 MPa ] 160 - 595
Capacity min-max [m3/h] [ 1,0 MPa ] 154 - 510
Capacity min-max [m3/h] [ 1,3 MPa ] 138 - 400
Dimension (LxWxH) [mm] 2000 x 1100 x 1580
Compressed air connection G 1 1/2
Weight [kg] 1530
Ambient temperature [°C] +5 ÷ +40
Cooling air demand [m³/h] 8700
Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature
Sound level L [dB(A 75
Power transmission system direct drive
Nominal motor power [kW] 55
Nominal fan motor power [kW] 1.5
Energy efficiency class / Motor IP Code IE3 / IP55
Feed voltage [V/Ph/Hz] 400/3/50
Recommended power feed cable [mm2 ] 3x50+PE
Protection fuse [A] 125
