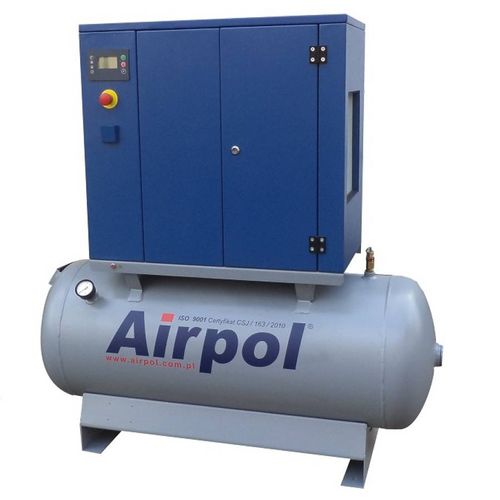

Screw compressor K 3airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Flow
25 m³/h
(882.87 ft³/h)- Power
3 kW
(4.08 hp)
Description
Screw compressor
Overpressure [MPa] - options 0,8 / 1,0
Fixed capacity:
Capacity [m3/h] [ 0,8 MPa ] 25
Capacity [m3/h] [ 1,0 MPa ] 20
Capacity [m3/h] [ 1,3 MPa ] -
Capacity [m3/h] [ 1,5 MPa ] -
Dimension (LxWxH) [mm] 1430x510x1470
Air receiver volume [l] 240
Compressed air connection G 1/2
Weight [kg] 250
Ambient temperature [°C] +5 ÷ +40
Cooling air demand [m³/h] 1200
Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature
Sound level L [dB(A 72
Power transmission system belt drive
Nominal motor power [kW] 3
Energy efficiency class / Motor IP Code IE3 / IP55
Feed voltage [V/ph/Hz] 400/3/50
Recommended power feed cable [mm2 ] 4x2,5
Protection fuse [A] 16
Catalogs
crew compressors
15 Pages
