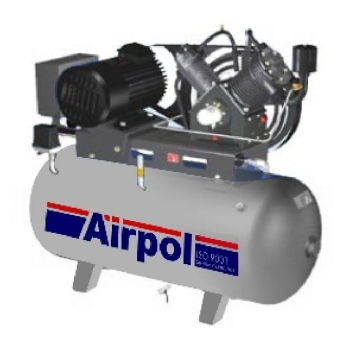

Piston compressor N70airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Flow
70 m³/h
(2,472.03 ft³/h)- Power
11 kW
(14.96 hp)
Description
Overpressure [MPa] 1,0
Efficiency [m³/h] 70
Efficiency [l/min] 1160
Weight [kg] 395
Dimension (axbxc) [mm] 1920x600x1450
Receiver capacity [l] 500
Compressed air connection G 3/4
Compressed air connection height dimension (d) [mm] 730
Ambient temperature [°C] from 5 to 40
Air temperature on the outlet [°C] approx.40 above ambient temperature
Sound level L [dB(A)] 85
Number of cylinders I / II stage [pcs] 1/1
Diameters of cylinders I / II stage [mm] 155/82
Piston stroke [mm] 70
Compressor rotational speed [rpm] 1250
Motor power [kW] 11
Motor rotational speed [rpm] 3000
Feed voltage [V] 400
Power feed cable [mm²] 5x6
Protection fuse [A] 35
