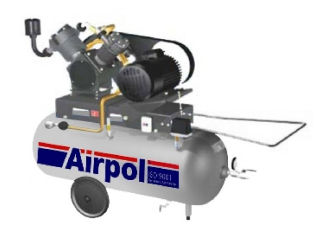

Piston compressor AB25-380-240airelectrically-poweredon casters
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- on casters
- Lubrication
- oil-free
- Application domain
- industrial
- Flow
25 m³/h
(882.87 ft³/h)- Power
4 kW
(5.44 hp)
Description
Overpressure [MPa] 1,0
Efficiency [m³/h] 25
Efficiency [l/min] 410
Weight [kg] 280
Dimension (axbxc) [mm] 1935x640x1320
Tank capacity [l] 240
Compressed air connection G 1/2
Compressed air connection height dimension (d) [mm] 350
Ambient temperature [°C] from 5 to 40
Air temperature on the outlet [°C] approx.40 above ambient temperature
Noise level L [dB(A)] 83
Number of cylinders I / II stage [pcs] 1/1
Diameters of cylinders I / II stage [mm] 130/72
Piston stroke [mm] 55
Compressor rotational speed [rpm] 750
Motor power [kW] 4
Motor rotational speed [rpm] 1500
Feed voltage [V] 400
Power feed cable [mm²] 5x4
Protection fuse [A] 25
