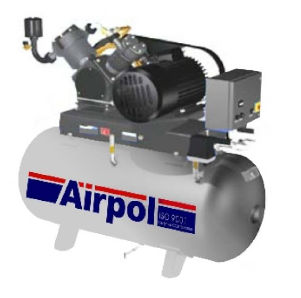

Piston compressor AB40-380-400airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial
- Flow
40 m³/h
(1,412.59 ft³/h)- Power
7.5 kW
(10.2 hp)
Description
Overpressure [MPa] 1,0
Efficiency [m³/h] 40
Efficiency [l/min] 660
Weight [kg] 345
Dimension (axbxc) [mm] 1920x600x1470
Tank capacity [l] 500
Compressed air connection G 3/4
Compressed air connection height dimension (d) [mm] 730
Ambient temperature [°C] from 5 to 40
Air temperature on the outlet [°C] approx.40 above ambient temperature
Noise level L [dB(A)] 83
Number of cylinders I / II stage [pcs] 1/1
Diameters of cylinders I / II stage [mm] 130/72
Piston stroke [mm] 55
Compressor rotational speed [rpm] 1250
Motor power [kW] 7,5
Motor rotational speed [rpm] 3000
Feed voltage [V] 400
Power feed cable [mm²] 5x4
Protection fuse [A] 25
