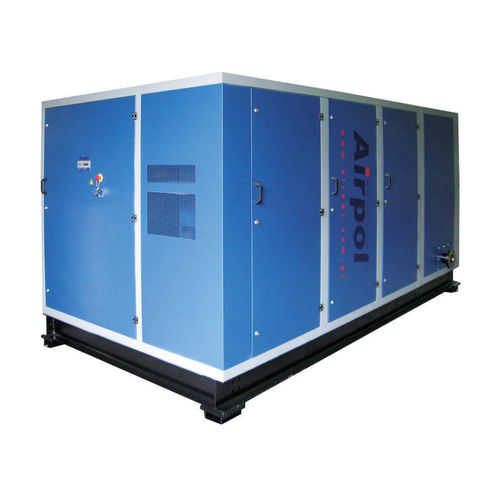

Screw compressor NB 250 airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Application domain
- industrial
- Other characteristics
- direct-drive
- Flow
1,800 m³/h
(63,566.4 ft³/h)- Power
250 kW
(339.91 hp)
Description
Screw compressor
Overpressure [MPa] - options 0,75 / 1,0 / 1,3
Fixed capacity:
Capacity [m3/h] [ 0,75 MPa ] 2400
Capacity [m3/h] [ 1,0 MPa ] 2160
Capacity [m3/h] [ 1,3 MPa ] 1800
Capacity [m3/h] [ 1,5 MPa ] -
Dimension (LxWxH) [mm] 4000x1900x2180
Compressed air connection DN 100
Weight [kg] 5700
Ambient temperature (min÷max) [°C] +5 ÷ +40
Cooling air demand [m³/h] 36000
Compressed air temperature on the outlet [°C] approx.10 degrees above ambient temperature
Sound level L [dB(A 85
Power transmission system direct drive
Nominal motor power [kW] 250
Fan motor power [kW] 15
Energy efficiency class / Motor IP Code IE3 / IP55
Feed voltage [V/Ph/Hz] 400/3/50
Recommended power feed cable [mm2 ] 2x(3x185)+PE
Protection fuse [A] 630
