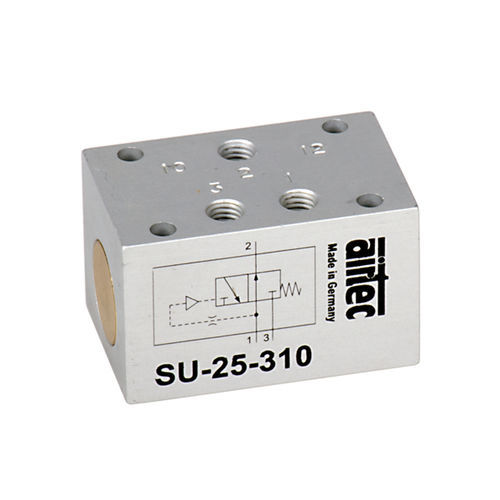

Spool pneumatic directional control valve SU seriespneumaticpilot-operated3/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pneumatic, pilot-operated
- Ports/positions
- 3/2-way
- Other characteristics
- aluminum, stainless steel
- Operating pressure
Max.: 10 bar
(145.04 psi)Min.: 3 bar
(43.51 psi)- Flow rate
160 l/min
(42.3 us gal/min)
Description
Medium
Filtered, oil-free and dried compressed air according to ISO8573-1:2010, Class 7:2:4, instrument air, free of aggressive additives. Alternatively the pressure dew point must be at least 10°C below lowest occurring ambient temperature.
Materials
Body: Al (anodized), seals: NBR and POM, inner parts: Al, stainless steel and brass
3/2-way one-shot valve. It converts a continuous pneumatic signal into a 0.3 s pulse.
Catalogs
No catalogs are available for this product.
See all of AIRTEC Pneumatic‘s catalogs
