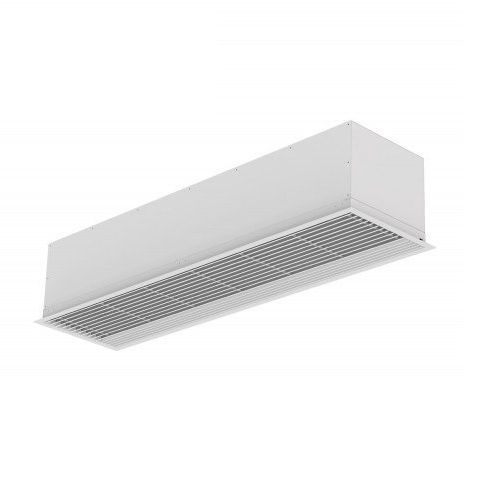

Ambient air curtain CR ECM series

ceiling-mountedcommercialcompact

Recessed Compact air curtain, intended for installation in false ceilings. With Kleenfan photocatalysis technology that disinfects and purifies the air, specially designed for commercial doors. Air curtain Recessed Compact with Kleenfan technology Kleenfan technology with photocatalytic purificant action fans. UV-A rays, from the long-life led, act on the titanium dioxide of the turbine generation Reactive Oxygen Species (ROS) than, through oxidation /reduction reactions, inactivate wide range of pathogenic microorganisms (viruses and bacteria). It mineralizes most of the pollutants present in urban areas produced by vehicles and industry (NOx, SOx, COx, formaldehydes, VOCs, etc.). Compact and low profile air only recessed air curtain, with full grille view, specially designed for applications without heating. Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling. Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request. Anodized aluminium outlet vanes, airfoil shaped EC Double-inlet centrifugal fans driven by an external rotor motor and low noise level, with very low consumption efficency fans. “A” type without heating, air only. Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
