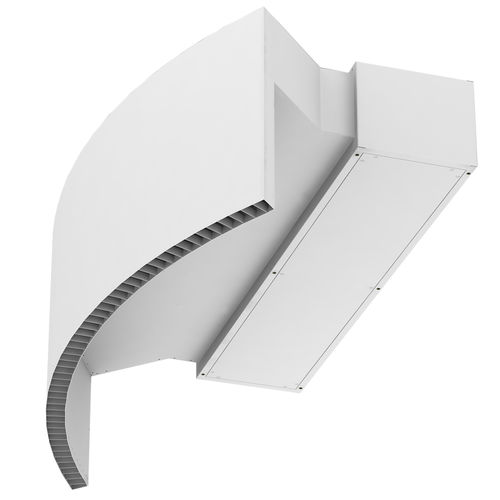

Ambient air curtain Rotowind

horizontalfor revolving doorswith electric heating

Rotowind air curtains for revolving doors are designed to fit perfectly with the curvature of the revolving door. Therefore it could be said that each air curtain is unique. They are mounted discreetly above the revolving door in two possible configurations and are usually painted with the same color as the revolving door to combine with the internal or external aesthetics of the building. We also design air curtains for large revolving doors. Specially designed to be installed in all type of revolving doors. Two possible layouts, tailored dimensions. Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Large faceted inlet grille avoiding intensive maintenance. Circular anodized aluminium outlet vanes, airfoil shaped. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil. Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
