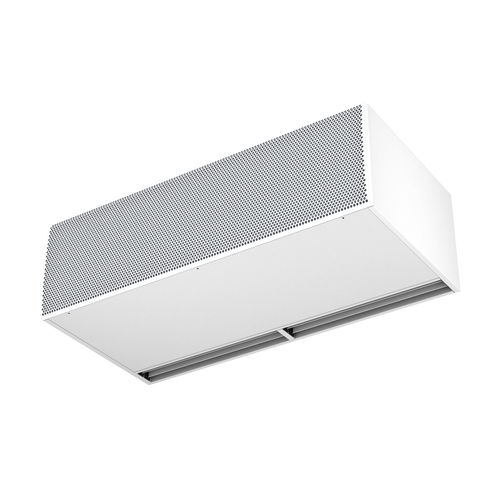

Cold air curtain Windbox L,XL

horizontalindustrial doorcommercial

Highly powerful and robust industrial air curtain, for large dimension doors. Windbox L, XL Air Curtain has been designed to create a high effective air barrier for doors up to 8 meters high, maintaining internal conditions and reducing energy losses. Airtècnics air curtains are manufactured with components and materials of high quality and durability. Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Two frontal grille options: Industrial perforated (by default), commercial microperforated. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil. Includes Plug&Play control with 10m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
