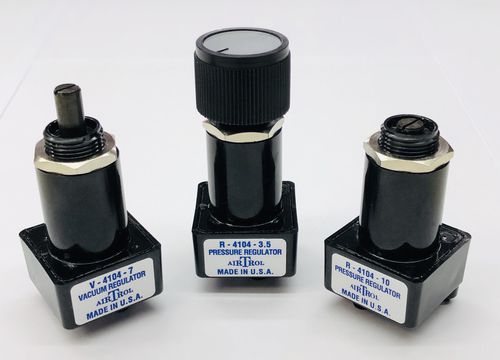

Spring pressure regulator 4104 series

single-stageplasticfor vacuum

Airtrol 4104 series pressure and vacuum regulators are designed for applications requiring very low output settings and low flow. Full scale ranges as low as 1.5 psi pressure and 3″ Hg vacuum are available. Settings as low as 1″ WC are easily maintained with both. Both units will also accept a pilot input, allowing pneumatic control of the output setting (see schematics). Hysteresis free adjustments are made through a non-rising stem, available with an attractive knob, plain (to allow the installation of OEM knobs) or flush for “back panel” applications. SPECIFICATIONS R-4104 SERIES (PRESSURE) - REGULATOR TYPE - Constant Bleed, Relieving WETTED MATERIALS - Polysulfone, Silicone, Stainless steel SUPPLY CONSUMPTION - See Graph MAX SUPPLY - 35 PSI (242) kPa) TEMPERATURE RANGE - 40° – 150° F (4° – 66° C) EFFECT OF SUPPLY VARIATION - < 0.02 PSI (0.14 kPa) per 1 PSI (6.89 kPa) supply change when dead-ended REPEATABILITY - < +/- 0.05 PSI (.35 kPa) DRIFT - < .03 PSI (.21 kPa) after 24 hours RECOMMENDED FILTRATION - 5 micron V-4104 SERIES (VACUUM) - MAX SUPPLY - 30″ (760 mm) Hg EFFECT OF SUPPLY VARIATION - < 0.01" (0.254 mm) Hg per 5" (127 mm) supply change when dead-ended REPEATABILITY - < +/- 0.03" (0.76 mm) Hg DRIFT - < .05" (1.27 mm) Hg after 24 hours - ALL OTHER SPECIFICATIONS REMAIN THE SAME AS PRESSURE VERSION
