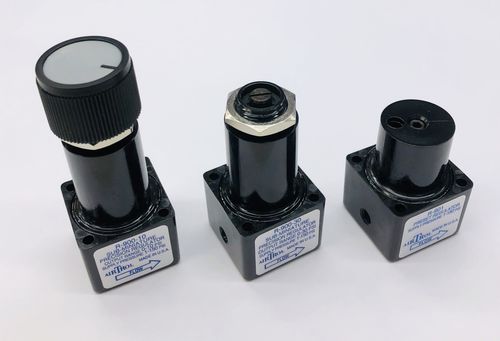

Spring pressure regulator R-900 seriessingle-stagefor medical applicationsprecision
Add to favorites
Compare this product
Characteristics
- Technology
- spring
- Number of stages
- single-stage
- Applications
- precision, for medical applications, pneumatic, HVAC
- Other characteristics
- high-precision, miniature, relieving, zero-bleed, corrosion-resistant
- Pressure
Max.: 150 psi
Min.: 0.5 psi
- Flow
Max.: 138 ft³/min
Min.: 0 ft³/min
(0 m³/min)- Orifice diameter
0.125 in
- Temperature
Max.: 66 °C
(150.8 °F)Min.: 4 °C
(39.2 °F)
Description
The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.
FEATURES:
Twenty turn hysteresis free adjustment allows pressure settings to 1″ WC resolution.
Four adjusting styles allow maximum design flexibility. The non-rising stem is available with an attractive knob, or plain, allowing installation of OEM knobs. Also available is a flush adjusting shaft, for applications where pressure setting is changed less frequently. Factory pre-set “tamperproof” models are also available.
Three mounting options include panel mount, through a 9/16″ hole (nut included), and base mount, through 4 holes 0.125″ dia. and manifold mount(See drawings)
Plastic construction – corrosion resistant wetted materials.
High accuracy – Low effect of supply variation on output.
Low cost – Perfect for OEM applications.
Options
Oxygen Clean
Factory Pre-set
Factory Installed Fittings
