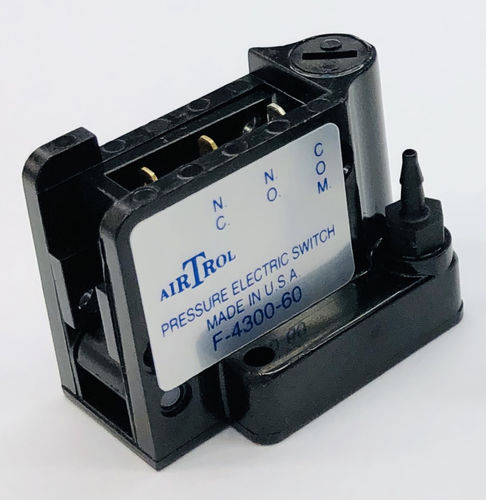

Electromechanical pressure switch F-4300 seriesSPDTpanel-mountthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- electromechanical
- Contact type
- SPDT
- Mounting
- threaded, panel-mount
- Material
- stainless steel, polysulfone
- Applications
- for pneumatic applications, OEM
- Other characteristics
- adjustable, low-pressure, factory-set, subminiature
- Pressure range
Min.: 0.2 psi
Max.: 100 psi
- Switching power: current
4 A
- Burst pressure
120 psi
- Process temperature
Min.: 4 °C
(39 °F)Max.: 66 °C
(151 °F)
Description
The F-4300 series pressure to electric switches are designed for applications requiring narrow operating deadband. They are available in adjustment ranges from 2 to 100 psi full scale. Four mounting styles, plus a wide variety of options including gold contacts, factory pre-set, and solvent bonded barbed fittings, make the F-4300 series an excellent choice for the O.E.M.
SPECIFICATIONS
TERMINATIONS - .110 Quick-Connect
AGENCY COMPLIANCES - UL/CSA Approved Microswitch
OPERATING SPEED - 25 MSEC
MATERIALS -
Diaphragm= - Polyurethane 1 (Wetted Materials)
Others= - Nylon, Carbon Filled Nylon, Acetal
REPEATABILITY - < +/- 2% F.S. OR .15 PSI, (1.03 kPa) whichever is greater, after 10,000 cycles
