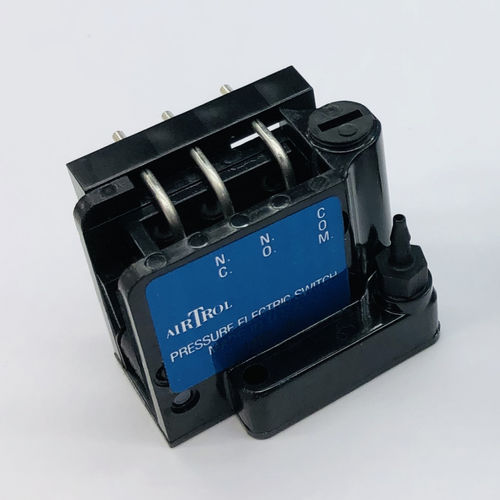

Electromechanical pressure switch F-4400 series SPDTPCBpolysulfone
Add to favorites
Compare this product
Characteristics
- Technology
- electromechanical
- Contact type
- SPDT
- Mounting
- PCB
- Material
- stainless steel, polysulfone
- Applications
- for pneumatic applications, OEM
- Other characteristics
- adjustable, low-pressure, factory-set, subminiature
- Pressure range
Min.: 0.4 psi
Max.: 100 psi
- Switching power: current
3 A, 4 A
- Burst pressure
Min.: 0 psi
Max.: 120 psi
- Process temperature
Min.: 40 °F
(4 °C)Max.: 150 °F
(66 °C)
Description
The F-4400 series pressure to electric switches are designed for P.C. board mount applications and are available in adjustment ranges from 2 to 100 psi full scale. A wide variety of options including gold contacts, factory pre-set and solvent bonded barbed fittings, make the F-4400 series an excellent choice for the O.E.M.
SPECIFICATIONS
TERMINATIONS - .060 (1.52mm) Solder Leads
AGENCY COMPLIANCES - UL/CSA Approved Microswitch
OPERATING SPEED - 25 MSEC
MATERIALS -
Diaphragm= - Polyurethane 1 (Wetted Materials)
Others= - Nylon 1 (Wetted Materials), Carbon Filled Nylon, Acetal
REPEATABILITY - < +/- 2% F.S. OR .1 PSI, whichever is greater, after 10,000 cycles
