Needle valve NV-30
pneumaticadjustmentflow control

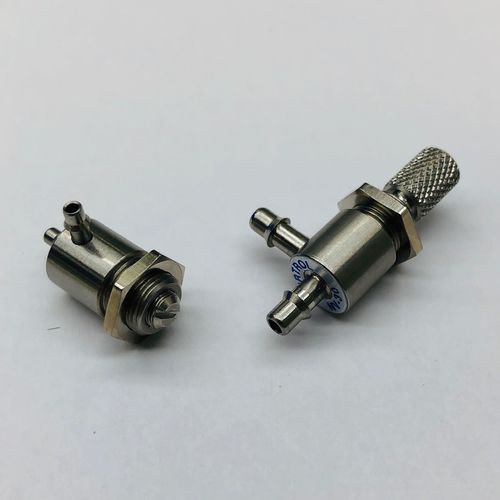

Needle valve - NV-30 - Airtrol Components Inc - pneumatic / adjustment / flow control

Needle valve - NV-30 - Airtrol Components Inc - pneumatic / adjustment / flow control - image - 2

Needle valve - NV-30 - Airtrol Components Inc - pneumatic / adjustment / flow control - image - 3

Add to favorites

Compare this product

Go to the Airtrol Components Inc website for more information

Characteristics

Type

needle

Operation

pneumatic

Function

flow control, adjustment, metering

Media

for gas

Body

subminiature, stainless steel, nitrile

Applications

vacuum, high-precision

Other characteristics

corrosion-resistant, with seal

DN

0.312 mm
(0.012 in)

Pressure

Min.: 0 psi

Max.: 180 psi

Temperature

Min.: -40 °C
(-40 °F)

Max.: 93 °C
(199 °F)

Flow rate

Min.: 1 l/min
(0.26 us gal/min)

Max.: 12 l/min
(3.17 us gal/min)

Description

The NV-30 series is a precision adjustable flow control used in pneumatic and fluidic systems. 303 Stainless Steel construction provides excellent corrosion resistance. Flow control needle has 7 to 8 turns of precision adjustment, and maximum flow approximately equal to a 0.025″ orifice. Unique laminar flow design ensures sensitive, repeatable control. Perfect for use in application requiring precision gas metering, and circuit speed or sequencing control. FEATURES • - 3 degree Pin Angle • - Simple Panel Mount • - Fine Adjustment, 64 TPI • - Attractive Finish • - Barbed Fittings for flexible tubing SPECIFICATIONS RECOMMENDED FILTRATION - 5 Micron Max. Panel Thickness = 0.15″
