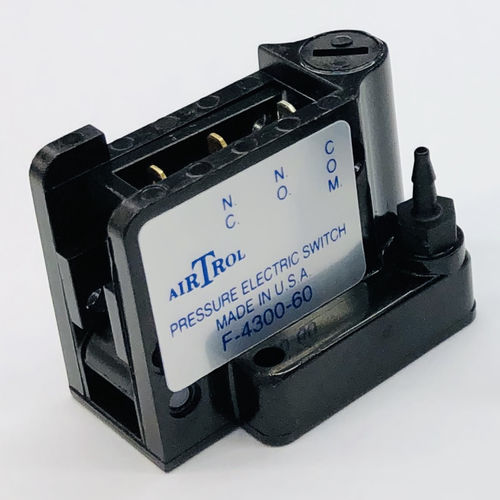

Electromechanical vacuum switch F-4300X series

for liquids and gasesOEMadjustable

The F-4300 series pressure to electric switches are designed for applications requiring narrow operating deadband. They are available in adjustment ranges from 2 to 100 psi full scale. Four mounting styles, plus a wide variety of options including gold contacts, factory pre-set, and solvent bonded barbed fittings, make the F-4300 series an excellent choice for the O.E.M. SPECIFICATIONS SWITCH TYPE - Single Pole, Double Throw TERMINATIONS - .110 Quick-Connect APPROVALS - UL/CSA Approved Microswitch OPERATING SPEED - 25 MSEC MATERIALS - Body= - Polysulfone 1 (Wetted Materials) Diaphragm= - Polyurethane 1 (Wetted Materials) Spring= - Stainless Steel 1 (Wetted Materials) Others= - Nylon, Carbon Filled Nylon 1 (Wetted Materials), Acetal TEMPERATURE RANGE - 40° TO 150° F [4°-66° C] REPEATABILITY - < +/- 2% F.S. OR .15" Hg whichever is greater, after 10,000 cycles
