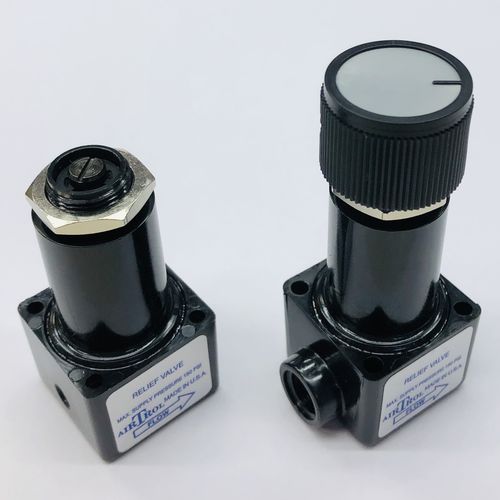

Sequence relief valve S-5200airpneumaticminiature
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Other characteristics
- pneumatic, sequence, miniature
- Controlled pressure
Min.: 0 psi
Max.: 100 psi
- DN
0.125 in
- Flow rate
56 l/min, 65 l/min
(14.79 us gal/min, 17.17 us gal/min)
Description
The S-5200 and S-5300 Series are designed for applications requiring precise sequencing of pneumatic control circuits. Sequencing and deadband characteristics can be tuned by varying the output restriction. Adjustments are made through a non-rising stem, available with an attractive knob, plain to allow the insulation of OEM knobs or flush for “back panel” applications.
SPECIFICATIONS
WETTED MATERIALS - Polysulfone, Silicone, Buna-N
TEMPERATURE RANGE - 40° – 150° F (4° – 66° C)
REPEATABILITY - < +/- 1% F.S. (Operating characteristics are influenced by flow and outlet restriction)
